Have you ever wondered how electrical connections are kept safe and organized? A junction box plays a crucial role in protecting your wiring and ensuring everything works properly.
In this post, we’ll explain how to wire a junction box, why it’s important for safety, and what tools you’ll need. You’ll also learn key steps to follow for a secure and code-compliant installation.
A junction box is an essential component in electrical systems, designed to house and protect electrical connections. It keeps wires organized, ensuring that they stay safe and secure.
Junction boxes are crucial in preventing short circuits, electrical fires, and keeping the wiring system compliant with safety codes. They protect the electrical connections from damage caused by moisture, dirt, or physical impact, ensuring long-lasting and safe o
peration.

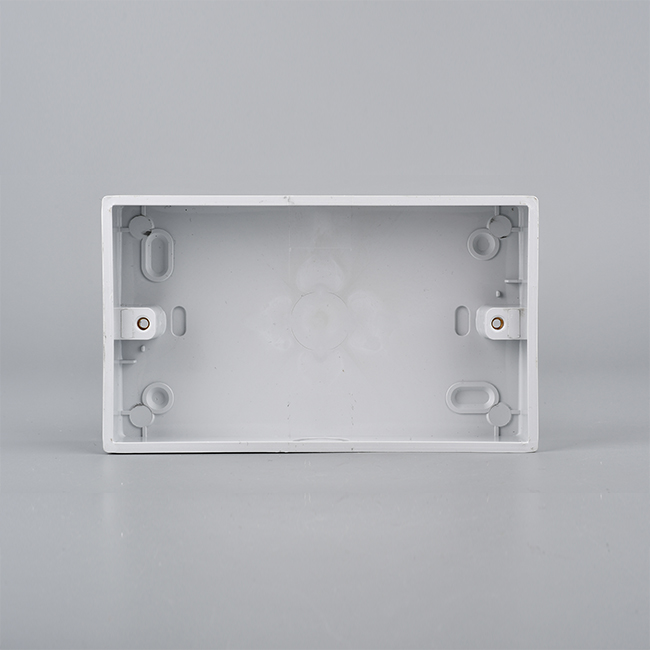

Plastic Boxes: Lightweight and easy to install, ideal for indoor use with non-metallic cables.
Metal Boxes: More durable and resistant to heat, necessary for industrial setups or when using metal-sheathed cables (BX).
Indoor: Standard plastic or metal boxes are sufficient for dry, indoor environments.
Outdoor: Weatherproof boxes are used for areas exposed to moisture or extreme conditions, ensuring safety in places like garages or outdoor wiring.
Junction boxes are used in various electrical setups, including light switches, outlets, and circuit extensions. They ensure that connections are made safely, organized, and in compliance with electrical codes.
Turn Off the Power: Always turn off the circuit breaker to prevent electrical shock.
Check the Power: Use a voltage tester to ensure the power is completely off.
Inspect Wires: Before starting, check for any damaged or frayed wires that need replacement.
Make sure to choose the right size based on the wire gauge (AWG).
Avoid overcrowding the box; each wire and component requires specific space for safety.
Refer to the National Electrical Code (NEC) for guidelines on box sizing and wire fill.
Location Selection: Find a location that is easy to access and complies with code.
Mounting the Box: Attach the box securely to studs or joists, ensuring it’s flush with the wall surface.
Preparation: Pop out the required knockouts on the box for cable entry.
Stripping the Wires: Use wire strippers to remove about 3/4 inch of insulation from each wire.
Organizing Wires: Arrange the wires neatly to prevent them from being stressed or tangled.
Using Wire Strippers: Select the correct gauge and avoid damaging the wire while stripping.
Connect Ground Wires: Twist together all ground wires (bare copper or green).
Metal Boxes: For metal boxes, attach a pigtail ground wire to the box’s ground screw.
Why Grounding Is Crucial: Grounding prevents electrical shock hazards and ensures safe operation.
Neutral (White) Wires: Twist all neutral wires together using a wire connector.
Hot (Black) Wires: Securely connect all hot wires, ensuring they are tightly twisted.
Other Hot Wires (Red): If present, connect the red wires to each other, following the same procedure.
Using Wire Nuts: Twist the wire nuts tightly to secure the wire connections.
Testing Connections: Tug on each wire gently to make sure the connection is solid and secure.
Gently fold the wires into the box, ensuring no overcrowding or excessive tension.
Ensure there’s enough space for airflow to prevent overheating and maintain safety.
Secure the junction box cover tightly using screws.
Sealing the Box: Ensure the cover is properly sealed to protect the wires from dust, moisture, and other elements.
Turn the circuit breaker back on and check that the new wiring works correctly.
Test all connected devices (e.g., lights or outlets) to ensure the wiring is functioning as expected.
Choosing a box that’s too small can lead to overheating and short circuits. Overcrowding the box with wires doesn’t leave enough space for airflow, causing heat buildup that can damage the wires and create fire hazards.
Grounding is a critical safety step that should never be overlooked. If you fail to connect ground wires, it increases the risk of electrical shock and equipment damage. Proper grounding prevents hazards in the event of a fault.
Exposed wires or loose connections are a recipe for disaster. Unsecured wires can cause electrical shocks or even fires. Always ensure that all wire ends are tightly connected and securely covered with wire nuts.
Selecting the wrong box for your environment can cause issues. For indoor use, a plastic box is sufficient, but for industrial settings or where metal-sheathed cables are used, a metal box is necessary. Using the wrong box may violate electrical codes and compromise safety.
Electrical work, including wiring a junction box, must comply with local codes like the National Electrical Code (NEC) in the U.S. These regulations are designed to ensure safety and efficiency in all electrical installations, reducing the risk of fire and electrical shock.
Box Fill Capacity: Ensure the junction box is large enough to accommodate all wires and devices. Overcrowding the box can cause overheating.
Accessibility: The junction box should remain accessible after installation, making it easy to maintain or troubleshoot later.
Proper Grounding: Always connect ground wires properly to prevent electrical shocks.
Wire Types: Use the correct wire for each circuit, following NEC guidelines for material and size.
Secure Connections: Ensure all connections are tight and properly insulated to avoid loose or exposed wires.
Code-Approved Boxes and Materials: Choose junction boxes and connectors that are UL-listed and meet local safety requirements.
Wiring a junction box correctly is essential for safety and meeting code requirements. Following the steps ensures secure, organized wiring that prevents hazards.
If unsure, consult a professional electrician. For more electrical guidance, feel free to explore trusted resources.
A: The box size depends on the number and gauge of wires. Refer to the National Electrical Code (NEC) for box fill guidelines to ensure adequate space.
A: Yes, but use a weatherproof junction box designed for damp or wet conditions, with proper seals to prevent moisture damage.
A: While you can wire a junction box yourself, it’s best to consult a professional if you’re unsure or unfamiliar with electrical codes.
